The following performance test results use industry standard benchmark and application test suites. Windows® application benchmark suites demonstrate the overall system performance an end user would achieve while running the most popular applications. Ziff-Davis’ Winstone® 96 and Winstone 32 benchmark suites are based on 13 different Windows applications that represent the most current 16-bit and 32-bit software available.
=====================================================================================
Ziff-Davis
Ziff-Davis Ziff-Davis Ziff-Davis WinBench

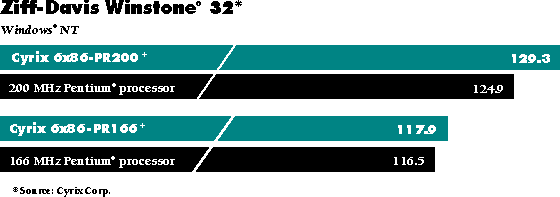

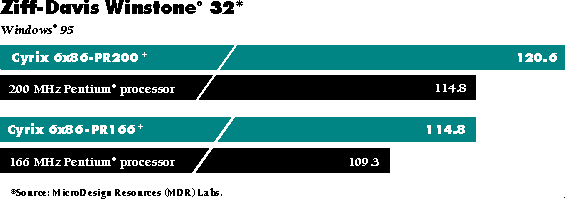

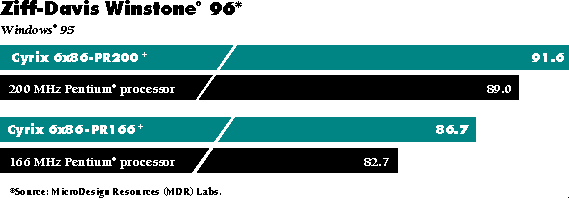

Winstone 96 Winstone 32 Winstone 32 Graphic Winmarks
Windows 95 Windows 95 Windows NT Windows 95
=====================================================================================
Cyrix 6x86-PR200+ 91.6 120.6 129.3 42.0
200 MHz Pentium 89.0 114.8 124.9 36.8
Cyrix 6x86-PR166+ 86.7 114.8 117.9 40.1
166 MHz Pentium 82.7 109.3 116.5 31.9
Cyrix 6x86-PR150+ 81.9 107.3 109.5 35.8
150 MHz Pentium 77.6 101.5 108.1 29.8
Cyrix 6x86-PR133+ 76.6 102.4 101.7 32.2
133 MHz Pentium 76.6 102.3 109.3 29.2
====================================================================================
Source: MDR Labs MDR Labs Cyrix Corp. Cyrix Corp.
DOS-based benchmarks such as Norton SI, Power Meter and Landmark highlight processor performance through a carefully selected instruction mix that underscores the architectural differences between processor offerings independent of system level differences.
===================================================================
Norton SI Power Meter Landmark
Ver. 8.0* MIPS 1.7* 2.0 (CPU)*
===================================================================
6x86-PR200+ 1020.4 139.2 1813.9
200 MHz Pentium 632.0 139.2 1151.2
-------------------------------------------------------------------
6x86-PR166+ 907.0 125.7 1612.5
166 MHz Pentium 525.8 114.6 957.7
-------------------------------------------------------------------
6x86-PR150+ 816.3 111.4 1451.1
150 MHz Pentium 475.4 102.6 865.9
-------------------------------------------------------------------
6x86-PR133+ 749.7 102.6 1337.6
133 MHz Pentium 420.6 92.8 766.2
===================================================================
* Source: Cyrix Corp.
Configurations for the Cyrix PR166+, PR150+, PR133+ and competitor processors use identically configured systems: Tyan motherboard (TritonFX chipset); 512K pipelined-burst cache, 32MB EDO DRAM; Quantum Fireball 1080A IDE disk; Matrox Millennium PCI card; 1024x768x256 resolution.
Cyrix 6x86-PR200+: DFI motherboard (VLSI Lynx chipset) was used to support the processor’s 75 MHz bus. Intel Pentium-200: Tyan mother-board (TritonHX chipset). Both systems were identically configured with: 256K pipelined-burst cache; 32MB EDO DRAM; Adaptec 2940 SCSI controller; Seagate ST32550N Barracuda 2GB disk; Matrox Millennium 2MB WRAM; 1024x768x256 resolution.
